Access to Engine

Via rear service platform

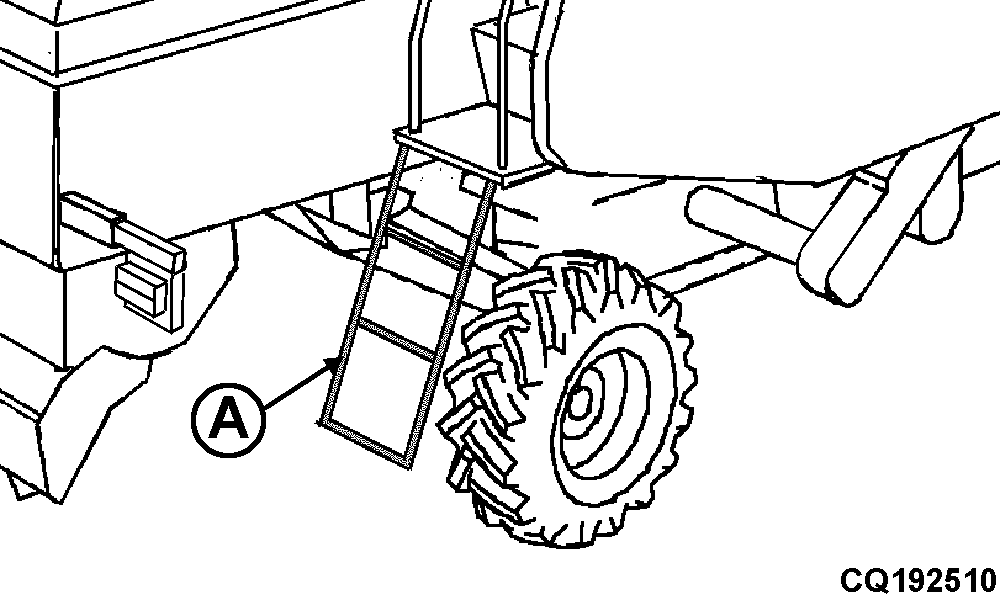

Access to the engine is via the rear right service platform. Use ladder (A).

AG,CO03622,2074 -19-14MAR02-1/2

Via Grain Tank

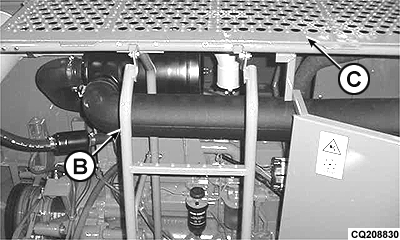

The engine compartment can be reached through ladder (B). Get to the deck (C) and then access to the grain tank.

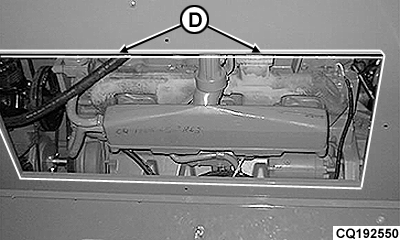

Open service hatch (D) to gain access to the injection pump and the engine.

CAUTION: If it is really necessary to get into the grain tank, shut off engine and remove key!

AG,CO03622,2074 -19-14MAR02-2/2
