Emptying Fuel Filter - 6.8 L Engines (1450) and 8.1 L Engines (1550)

CAUTION: Always remove ignition key before performing maintenance work on fuel filter. Avoid fire hazards!

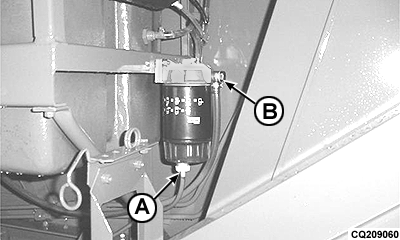

Slacken off drain screw (A).

Open bleed screw (B).

Retighten drain screw as soon as the water and sediment deposits have drained off.

Then retighten bleed screw.

If necessary follow bleed fuel system procedure.

AG,CO03622,2087 -19-15NOV02-1/1
