Bleed the Fuel System - 8.1 L Engine (1550)

First bleed the water separator.

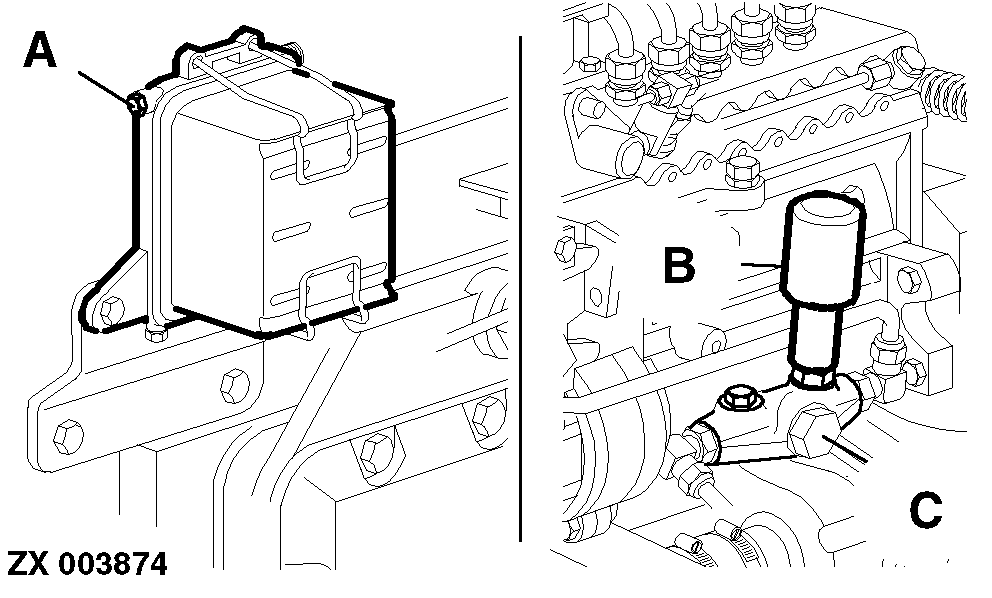

Then slacken off bleed screw (A).

Operate primer piston (B) manually at fuel transfer pump (C) until the fuel emerging from bleed screw (A) is free of air bubbles.

Then retighten bleed screw.

NOTE: If no resistance is felt when moving the primer piston, turn engine over with starting motor to change position of primer pump cam.

AG,CO03622,2095 -19-14MAR02-1/1
