Cleaning Rotary Screen, Oil Cooler, Condenser and Radiator

CAUTION: Shut off engine and remove key before cleaning rotary screen.

Pull latch (A) and open rotary screen door (B).

AG,CO03622,2101 -19-09OCT02-1/2

Check the rotary screen daily to be certain it turns freely.

Clean the rotary fan screen with a brush and cmpressed air when dirt and chaff build up on or behind the screen.

Pull oil cooler and condenser (A) out.

Clean oil cooler, condenser and radiator.

To clean with compressed air, blow from the inside out.

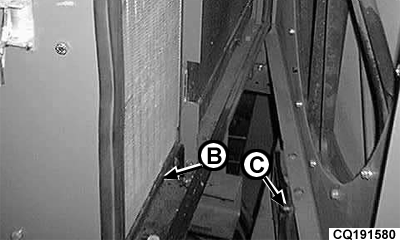

Clean out dirt from lower vaccum ducts (B) and (C).

IMPORTANT: When using high pressure air or water, be careful of fin damage to coolers. Use a fin comb to straighten bent fins. Bent fins will decrease cooler performance.

AG,CO03622,2101 -19-09OCT02-2/2
