Transmission

Change oil after the first 50 hours of operation.

Thereafter change oil every 500 hours of operation or before every harvesting season (whichever occurs first).

Check oil level every 250 hours of operation.

IMPORTANT: Always use specified oil.

Oil change

Remove cap screw (D).

Remove drain plug (A) from transmission housing and take out line (E).

Check filter (F) and O-rings (G), and replace if necessary.

IMPORTANT: When reinstalling, make sure filter (F) is seated correctly in transmission housing.

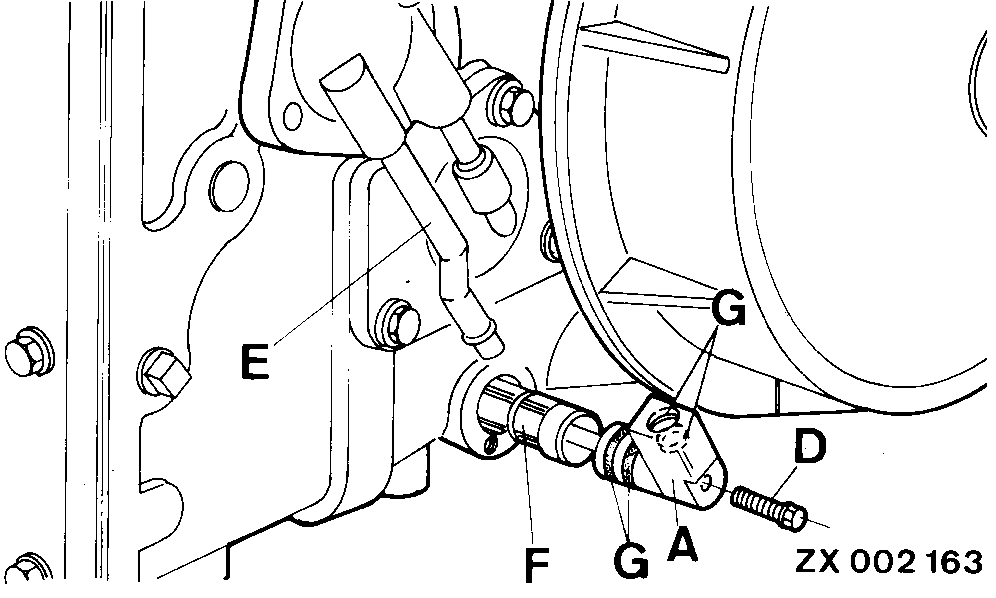

A-Oil drain plug
B-Check plug
C-Filler and bleed plug
D-Looking Bolt
E-Line
F-Screen
G-O-rings

AG,CO03622,2115 -19-06JUN02-1/1
