Removing Air Filter

IMPORTANT: To clean out engine air filter element, shut off engine and remove key.

Perform the service on the air filter only when the air filter indicator light remains on.

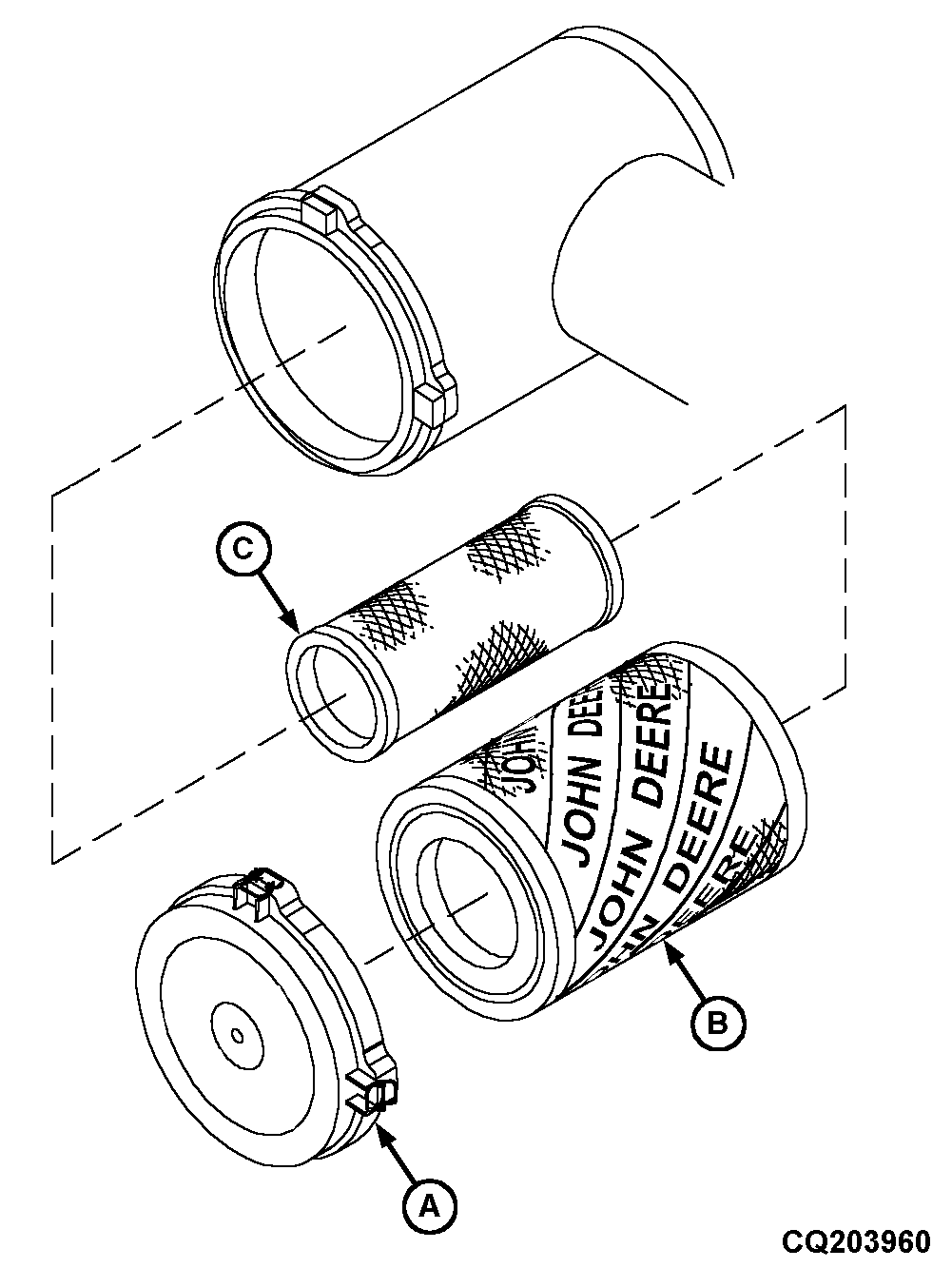

Remove cover (A) to remove primary element (B)..

Clean, wash or replace the primary element (B). Neither clean nor wash the safety element (C). Install a new one if it is necessary.

IMPORTANT: NEVER run the engine without air cleaner element installed.

A-Cap
B-Primary filter
C-Safety element

AG,CO03622,2116 -19-15MAR02-1/1
