Adjusting Feeder House Slip Clutch

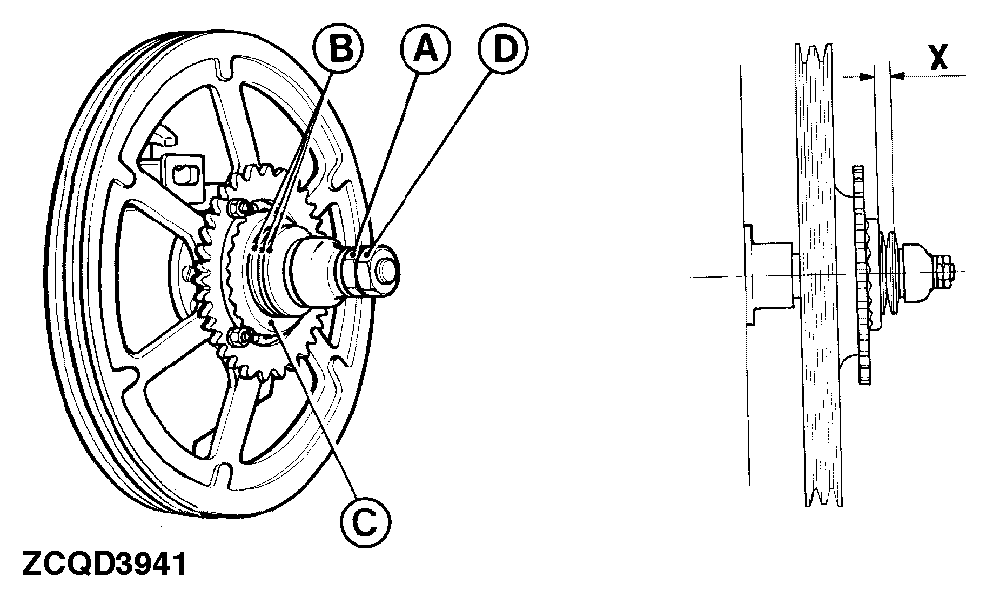

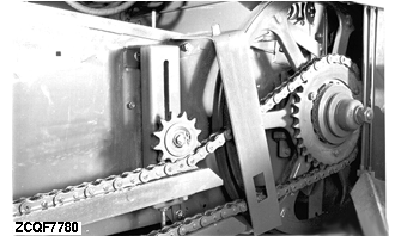

The slip clutch is adjusted with hex nut (A) against three disk springs (B) which press on clutch (C).

First loosen locknut (D) and hex nut (A). Then tighten nut (A) until distance (X) is 17.2 mm (0.68 in.). Next, tighten locknut (D) to 140-160 N·m (102.2 to 116.8 lb-ft).

A-Hex Nut
B-Disk Spring
C-Clutch
D-Locknut
X-17.2 mm (17.27 mm.)

AG,CO03622,2133 -19-27FEB02-1/1
