Replacing Feeder House Drive Belt

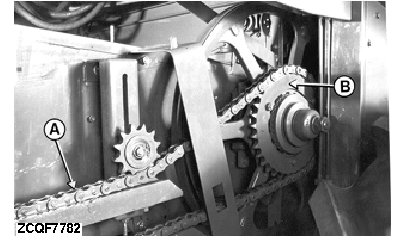

Remove the header drive shield. Then loosen the header drive chain (A) and remove sprocket (B) from the feeder house upper shaft.

Remove guide (C).


A-Header Drive Chain
B-Sprocket
C-Guide
D-Belt Idler

ZCQF7782
CQ192960

AG,CO03622,2135 -19-15MAR02-1/4

Remove Mounting Bolts:

Remove mounting bolts (A) and locking bolt (B).

ZCQF3961

AG,CO03622,2135 -19-15MAR02-2/4

Remove Pulley:

Remove beater pulley (B).

ZCQF3971

AG,CO03622,2135 -19-15MAR02-3/4

causym CAUTION: This pulley weighs about 40 kg (88 lb) and is difficult to handle.

Reverse the above sequence to install a new belt.


A-Hub
B-Drive Belt

ZCQF3981

AG,CO03622,2135 -19-15MAR02-4/4
