Feeder House Hydraulic Reverser Drive Chain Guard

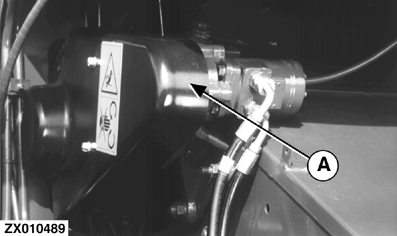

Lift off guard (A).

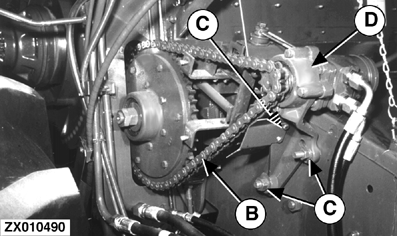

Adjust drive chain (B) tension as follows:

- Loosen hex. nuts (C).

- Swing hydraulic motor (D) to the front and adjust chain tension as described in "Drive Chains" in this Section.

- Retighten hex. nuts (C).

- Reinstall guard (A).


A-Drive Shield
B-Drive Chain
C-. Nuts
D-Hydraulic Motor

ZX010489
ZX010490

AG,CO03622,2136 -19-17MAY02-1/1
