Adjusting Threshing Unit Belt Guide

NOTE: Shut off engine before adjusting belt guide to avoid accidents.

To adjust, it is necessary to loosen bolts in slotted supports (B).

With the belt tightened, there should be a play (X) of 2-5 mm (0.08 to 0.2 in.) between the belt and the guide (A).

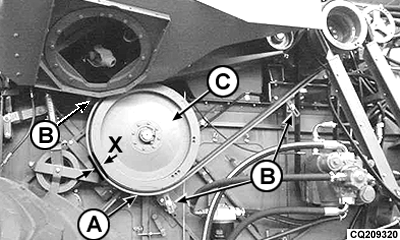

A-Belt Guide
B-Slotted Support (3)
C-Pulley
X-2 to 5 mm (0.08 to 0.2 in.) Play

AG,CO03622,2137 -19-05FEB02-1/1
