Adjusting Tailings Elevator Drive Belt Tension

The tailings elevator is driven by the beater pulley via the elevator slip clutch.

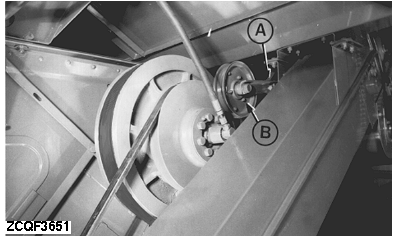

Belt (A) is tensioned by idler pulley (B).

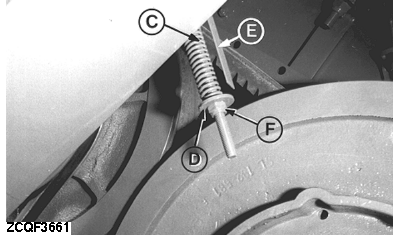

To obtain proper tension backing washer (D) should be level with indicator tab (E).

Adjust with nut (F).

A-Drive Belt
B-Idler Pulley
C-Spring
D-Backing Washer
E-Indicator Tab
F-Adjusting Nuts

AG,CO03622,2144 -19-15MAR02-1/1
