Remove the wing nut and open the cover.

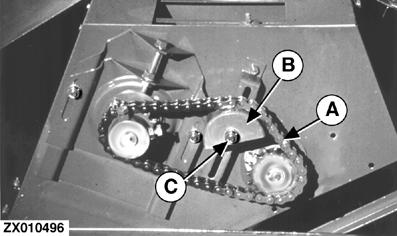

To adjust chain tension (A) using idler (B), loosen nut (C) from the bolt and move idler (B) as needed.
A-Drive Chain B-Tensioner sprocket C-Looking Bolt
AG,CO03622,2150 -19-15MAR02-1/1
