Adjusting Unloading Paddle Drive Chain

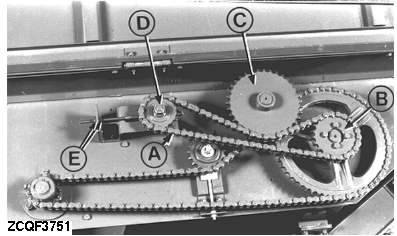

The unloading paddle is driven by chain (A) running from lower unloading auger sprocket (B) to sprocket (C).

Chain (A) can be tightened by moving sprocket (D) with adjusting nuts (E).


A-Drive Chain
B-Sprocket
C-Sprocket
D-Idler Sprocket
E-Adjusting Nuts

ZCQF3751

AG,CO03622,2151 -19-15MAR02-1/1
