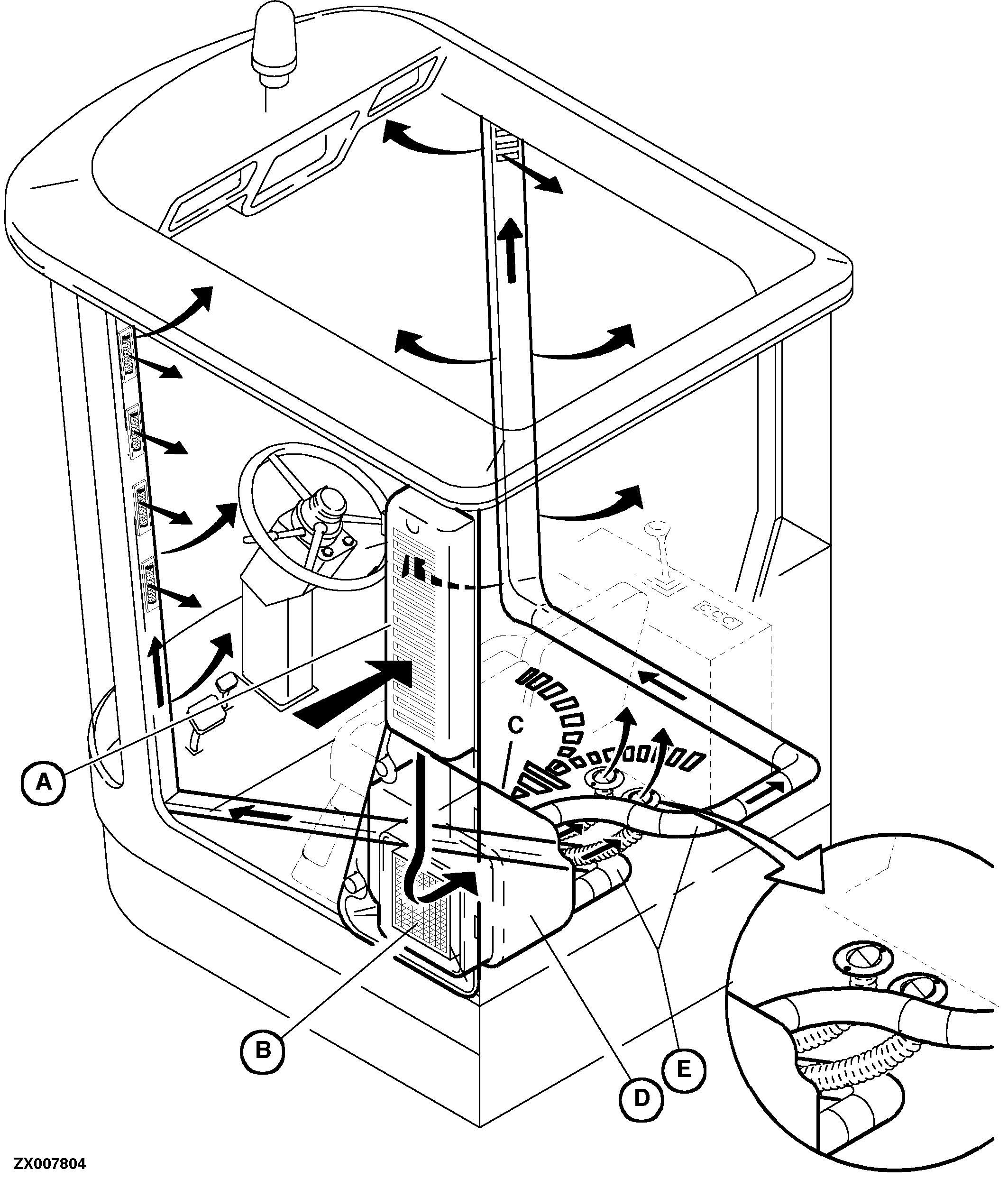

Air Intake And Distribution

ZX007804

A-Air intake channel
B-Air (main) filter

C-Recirculating air filter

D-Fan

E-Air outlet channels

AG,CO03622,2159 -19-15MAR02-1/1
