Removing Paper (Main) Filter Element

IMPORTANT: Thoroughly clean paper filter element (with compressed air) every 100 hours of operation. Clean more frequently when operating under dusty conditions (clean daily, if necessary).

NOTE: Replace filter element after it has been washed six times.

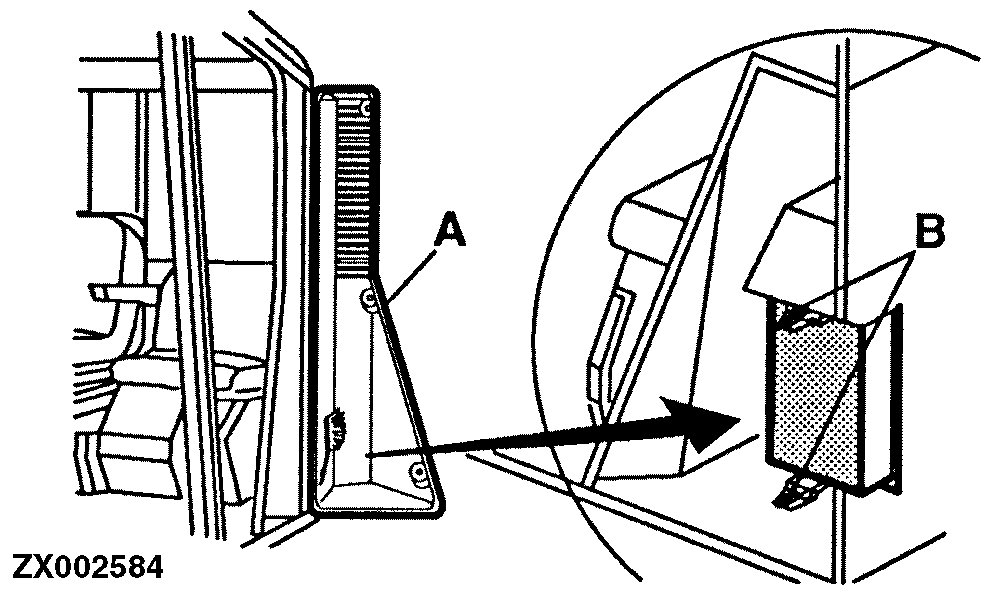

Open service cover (A).

Disengage fasteners (B).

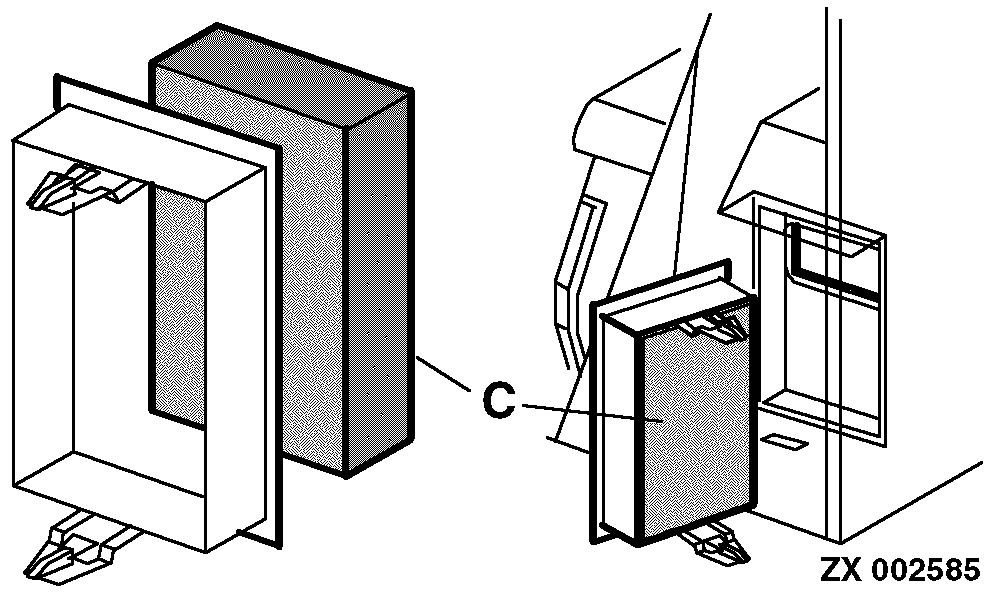

Lift out filter housing with element (C).

When reinstalling, make sure filter element is in correct position.

AG,CO03622,2165 -19-06JUN02-1/1
