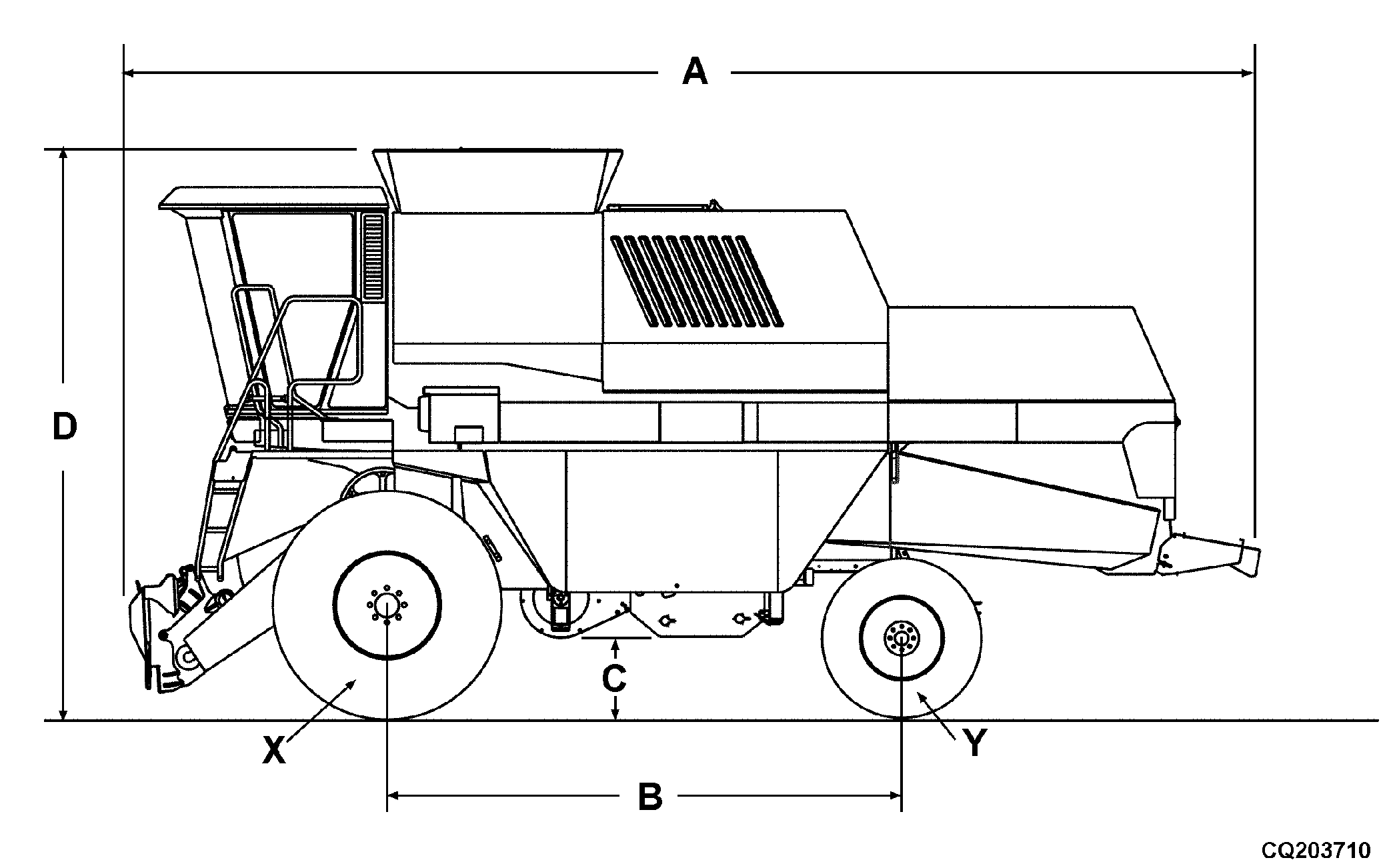

Dimensions 1450 and 1550
|
|
|
|
|
| Model | X | Y | A | B | C | D |
| 1450 | 23.1-26 | 16.9-24 | 7,965 mm | 3,570 mm | 490 mm | 3,760 mm |
| 1450 | 23.1-30 | 12.4-24 | 7,965 mm | 3,570 mm | 530 mm | 3,795 mm |
| 1450 | 24.5-32 | 16.9-24 | 7,965 mm | 3,570 mm | 580 mm | 3,850 mm |
| 1450 | 28.1-26 | 12.4-24 | 7,965 mm | 3,570 mm | 465 mm | 3,730 mm |
| 1550 | 28.1-26 | 16.9-24 | 7,965 mm | 3,720 mm | 475 mm | 4,035 mm |
| 1550 | 30.5L32R1 | 16.9-24 | 7,965 mm | 3,720 mm | 575 mm | 4,160 mm |
AG,CO03622,2177 -19-05NOV02-1/1 |
