Dimensions 1450 and 1550 (Continued)

CQ203720

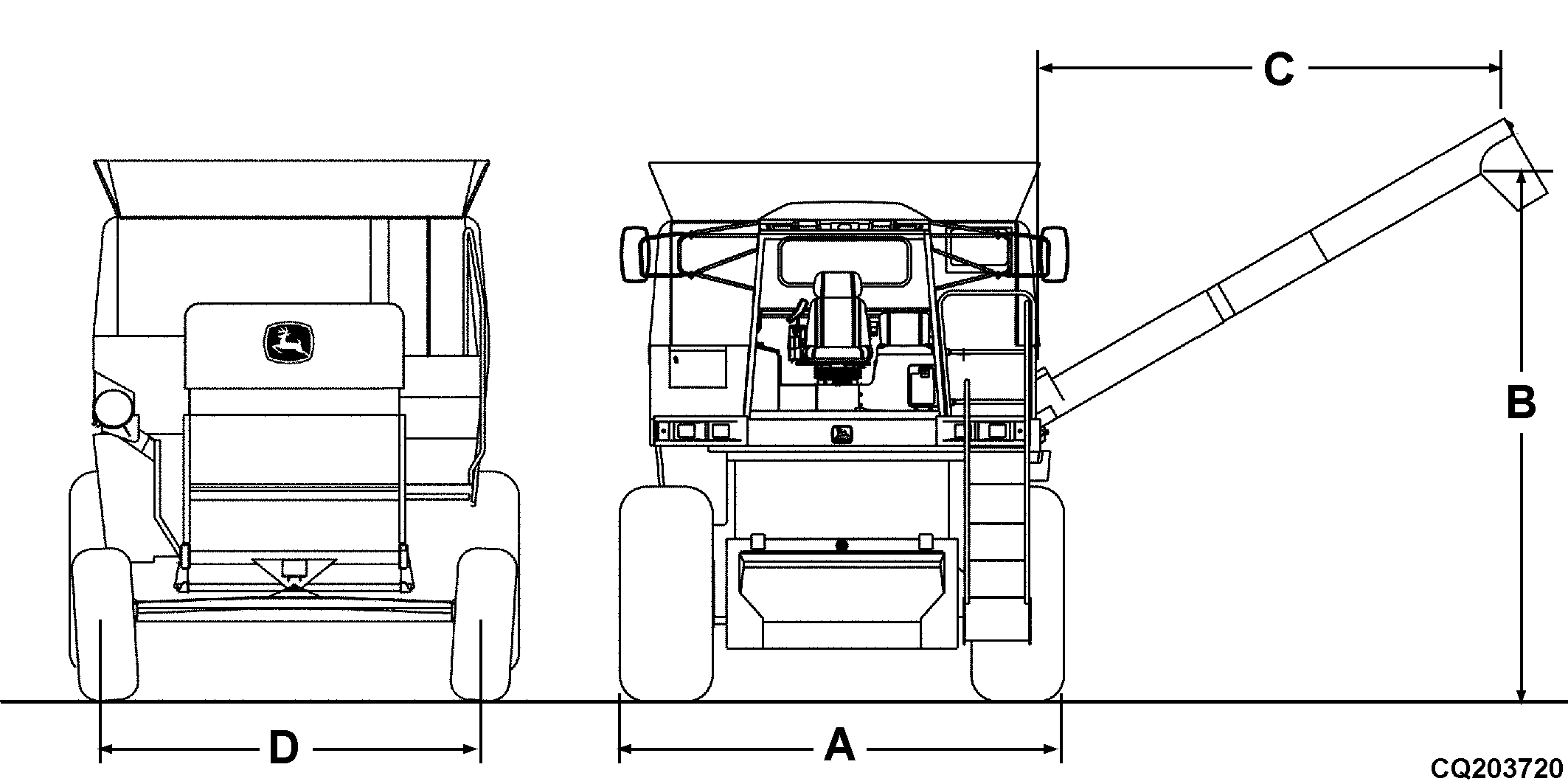

Rear and Front View


A-Front axle width
B-Height of unloading point


C-Unloading auger tube(1450 - long / 1550 - extra long)


D-Rear axle width
X-Front tires


Y-Rear tires

Model X Y A B C D
1450 23.1-26 16.9-24 3,370 mm 4,168 mm 3,713 mm 2800 mm
1450 23.1-30 12.4-24 3,275 mm 4,200 mm 3,713 mm 2800 mm
1450 24.5-32 16.9-24 3,300 mm 4,258 mm 3,713 mm 2,370 mm
1450 28.1-26 12.4-24 3,640 mm 4,148 mm 3,713 mm 2800 mm
1550 28.1-26 16.9-24 3,785 mm 4,675 mm 4,217 mm 2800 mm
1550 30.5L32R1 16.9-24 3,940 mm 4,795 mm 4,217 mm 2800 mm



AG,CO03622,2178 -19-05NOV02-1/1
