Operating Straw Chopper

When engaging separator drive, proceed as follows:

Run engine at low-rated speed.

Road safety switch in field position

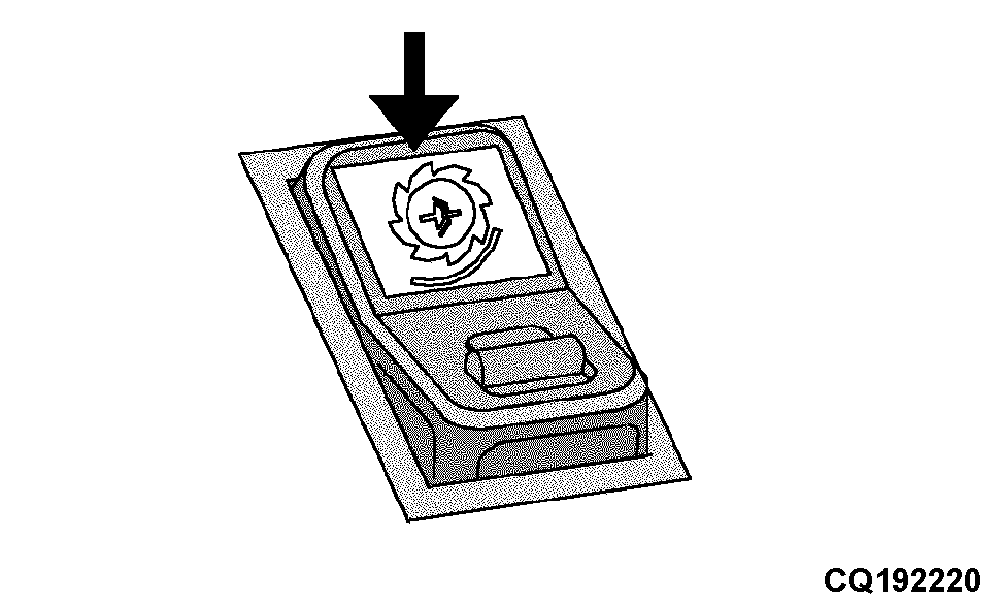

Push up operating lock and depress top part of switch (symbol).

Increase engine rpm to full load speed.

AG,CO03622,2181 -19-14MAR02-1/1
