Chaff Spreader Drive (1450 and 1550)

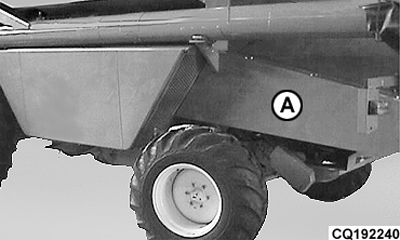

To access to chaff spreader is required to remove the shield (A). See "Service - Drives and Shields".

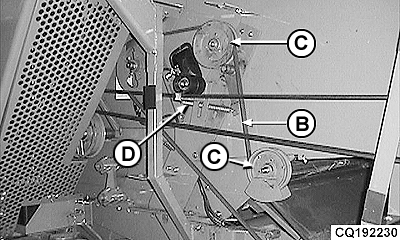

The chaff spreader is driven from the rear left-hand straw walker shaft. Drive belt (B) is tensioned by means of two pulleys (C) which are under spring (D) tension.

· There is no adjustment.

· With insufficient belt tension, replace spring..

CAUTION: NEVER operate the combine without shields installed correctly!

A-Shield
B-Drive Belt
C-Pulley
D-Spring

AG,CO03622,2182 -19-17MAY02-1/1
