Folding Down the Chaff Spreader (1450 and 1550)
 CAUTION:
The Chaff Spreader is heavy and even being mounted, it's safe that two people fold down the chaff spreader.
- It's recommended to fold down the chaff spreader when it's necessary to work on the sieves and also on the straw walkers.It will make the access easier. It will make the access easier.

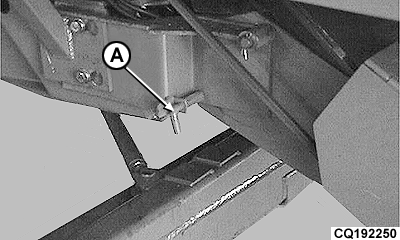

- Push out the handles (A) in both sides of the chaff spreader.

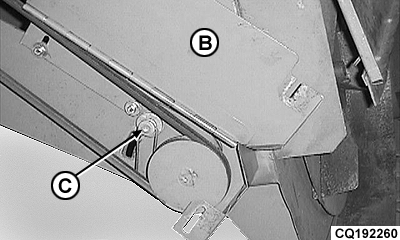

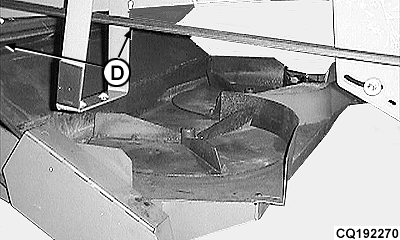

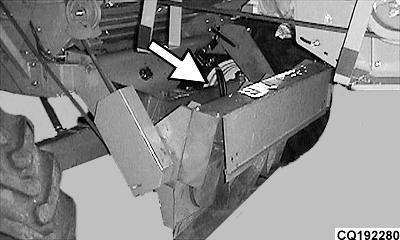

- Pull up the shield (B), loosen nut (C) and release lockers (D) and fold down the mechanism slowly until it gets in its position (Folded).
|
