Chaff Spreader Gear Box (1450 and 1550)

Recommended oil SAE 90.

Capacity (each):

· 0.55 L (0.14 U.S. gal)

NOTE: To fill up the chaff spreader gear box it's necessary to fold down chaff spreader, for details see "Chaff Spreader and Straw Chopper" Section.

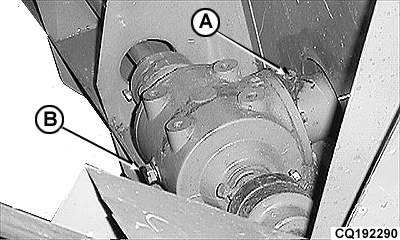

A-Oil filler plug
B-Oil drain plug

AG,CO03622,2185 -19-23OCT02-1/1
