Changing Oil of Air Compressor

Open the Filler neck and oil level (A) and Drain plug (B), letting the oil get into a suitable recipient.

Tighten drain plug (B).

Fill with the recommended oil. See section "Fuel, Lubricants and Coolant".

Air compressor crankcase capacity:

0,37 L (370 ml ; 0.097 U.S. gal)

Check on the dipstick the oil level.

The oil level should be between upper and lower marks on dipstick

NOTE: At the first 50 hours of operation the air compressor will have a higher oil consumption, because of this it is very important to check the oil level daily and refill, if necessary. After the first oil change the consumption will be reduced to minimum.

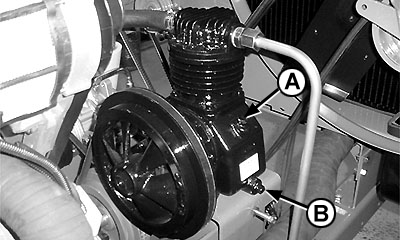

A-Filler neck and oil level
B-Drain Plug

AG,CO03622,2190 -19-11OCT02-1/1
