Replacing Rotary Screen External Drive Belt

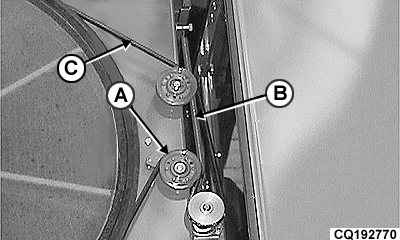

To remove belt (C), loosen idler pulley (A) releasing spring (B).

A-Idler Pulley
B-Spring
C-Drive Belt

CQ192770

AG,CO03622,2205 -19-15MAR02-1/1
