Opening The Large Side Shield

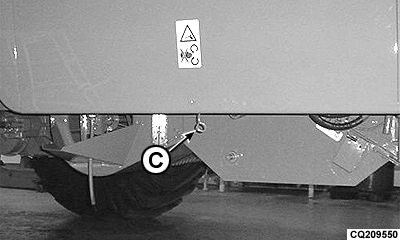

Pull the spring latch (C) down or turn lock.

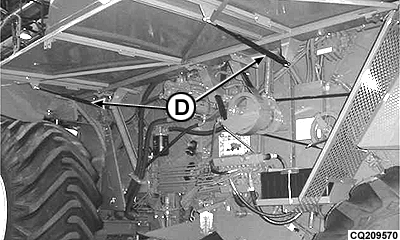

The gas cylinders (D) will support the shield once shields are released from the spring latch. The shield will open enough to allow safe service on the combine side.

To close, lower the shield and fit it in spring latch (C) or turn lock.

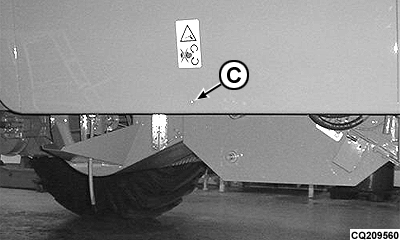

C-Latch (1450 and 1550) - Lock (1450 CWS and 1550 CWS)
D-Gas cylinders

AG,CO03622,2210 -19-13NOV01-1/1
