Rice Harvesting Attachment

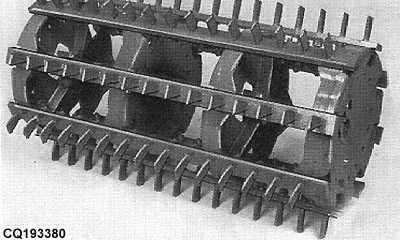

This attachment consists of the rice cylinder and rice concave.

Threshing of the rice is accomplished through the friction and battering effect on the spiked teeth on rice concave and cylinder.

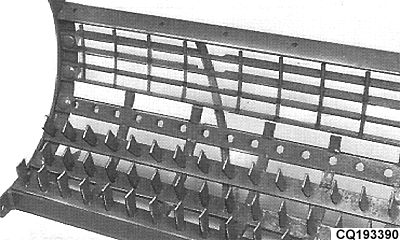

The rice concave can be equipped optionally with three or four rows of spiked teeth.

Using a hammer with a piece of hardwood, drive in new teeth. Firmly bolt down teeth. Install teeth with the elongated side to the rear, as seen in direction of rotation.
