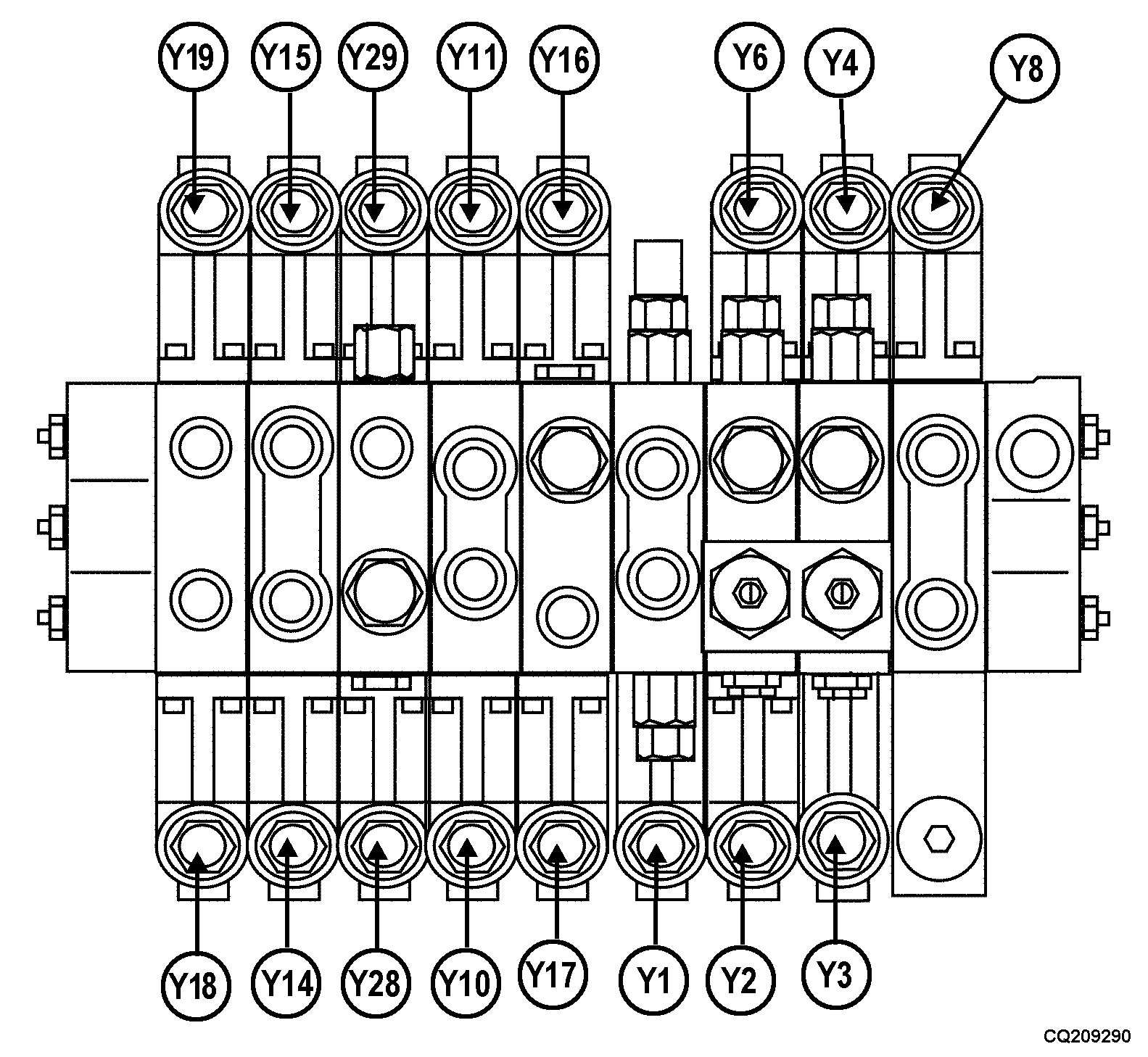

Y1-Splitter
Y2-Header fast raise
Y3-Header slow raise
Y4-Header fast lowering
Y6-Header slow lowering
|
Y8-Hydraulic reverser
Y10-Swinging in unloading auger
Y11-Unloading tube swinging
Y14-Lateral tilt to right side
|
Y15-Lateral tilt to left side
Y16-Reel rear position
Y17-Reel forward position
Y18-Reel lowering
Y19-Reel raise
|
Y28-Decreasing threshing cylinder variator speed
Y29-Increasing threshing cylinder variator speed
|
