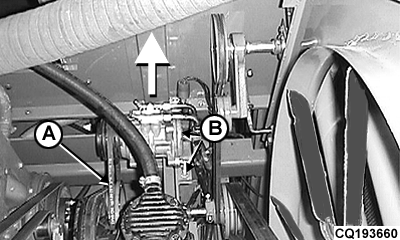

Tension of drive belt (A) is obtained when the compressor is moved onto the direction of the arrow.
Loosen bolts (B) and desplace compressor as indicated.
Tighten firmly the screws (B).
