Brake Fluid Reservoir

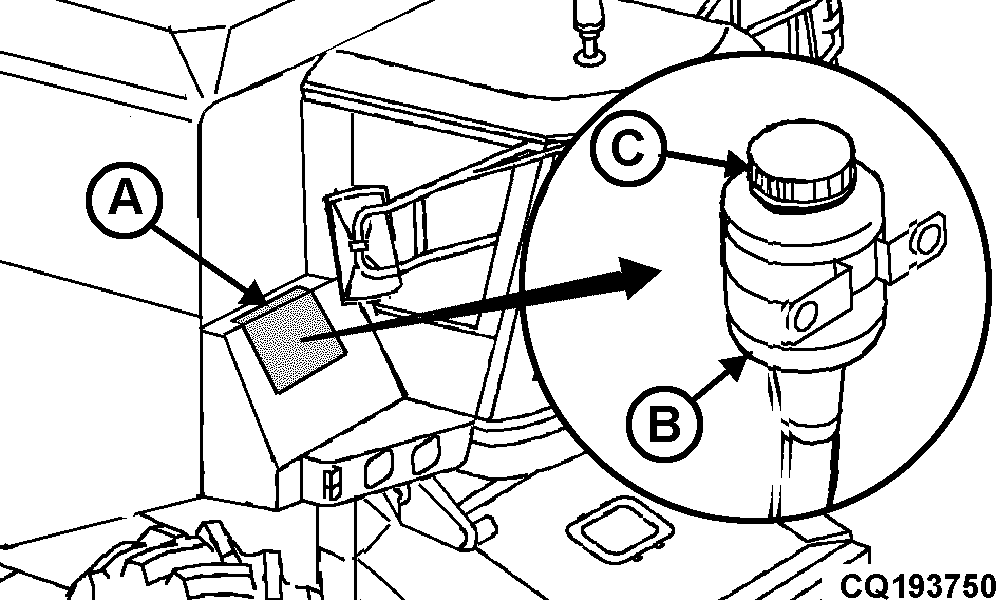

The reservoir (B) is mounted inside the combine, near the tailings inspection window. To access the reservoir, remove inspection window (A) and remove reservoir cap (C).

To compensate for fluid losses fill the reservoir with specified brake fluid only.

Check the fluid level after 200 hours of operation.

A-Inspection window - tailings
B-Brake fluid reservoir
C-Reservoir cap

AG,CO03622,2251 -19-17MAY02-1/1
