OMCQ39839: 1450, 1550, 1450 CWS, 1550 CWS, 1450 WTS and 1550 WTS Combines , Block File: AG_CO03622_2256_19

causym CAUTION: Shut off engine and remove key before cleaning the oil cooler.

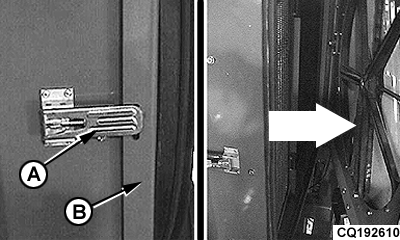

Pull latch (A) and open rotary screen door (B).

Pull up tap (C) then, free access to the oil cooler can be obtained (1450 and 1550).

Free access to the oil cooler (D) (1450 CWS and 1550 CWS).

1450 e 1550

CQ203790

1450 CWS and 1550 CWS

AG,CO03622,2256 -19-15MAR02-1/1
