Tightening Front Axle Attaching Screws

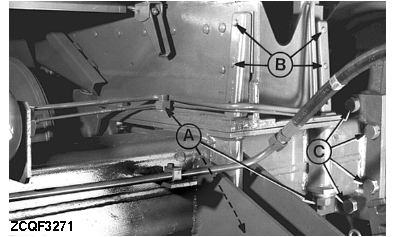

Tighten as follows:

- Nuts (A) to 300 N·m (218 lb-ft).

- Bolts (B) to 200 N·m (145 lb-ft).

- Bolts (C) to 250 N·m (182 lb-ft)..

NOTE: Tighten during the first 25 hours of operation and then at the start of each harvesting season.

AG,CO03622,2258 -19-15MAR02-1/1
