Changing The Hydraulic Oil and Filter

Change the hydraulic oil filter:

• According to specified times in section "Lubrication Chart, Periodic Service".
• Whenever the hydraulic filter restriction indicator lights.

IMPORTANT: Observe utmost cleanliness when installing filter.

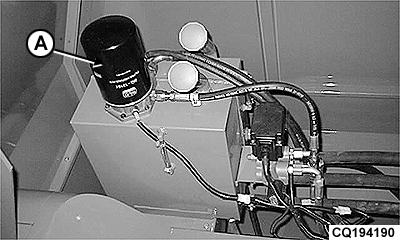

Loosen and remove filter (A).

Dispose of filter properly and replace with a genuine John Deere filter.

- Coat filter sealing surface with oil.

- Tighten filter (A) element by hand until sealing ring touches filter housing sealing surface and then tighten a further 3/4 to 1-1/4 turns. Do not overtighten.

- Start engine and check for leaks.

Retighten if necessary.
