Functions of the Valves on the Block

The main hydraulic valve block controls 6, 7 or 8 functions of the combine through individual modules (valves) depending upon the configuration and combine model:

- 1450/1550 (without lateral tilt and without reel forward and backward system) = 6 functions

- 1450 CWS (without lateral tilt) = 7 functions

- 1450 with lateral tilt = 8 functions

- 1550 CWS (without lateral tilt) = 7 functions

- 1550 with lateral tilt = 8 functions

The secondary hydraulic valve block controls three functions of the combine.

NOTE: See detailed list of the valves (solenoids) in "Service - Electrical System".

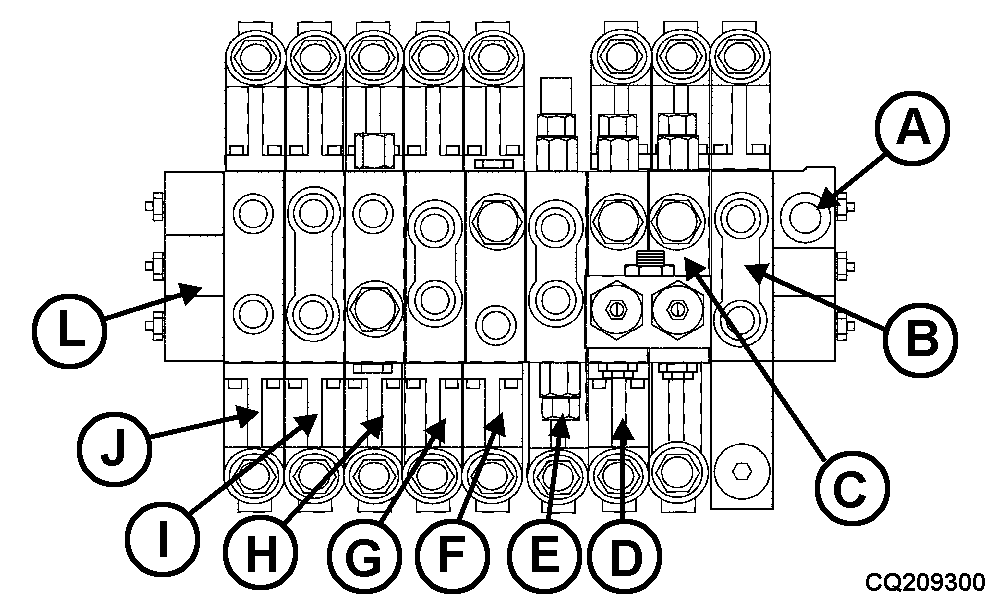

A-Return to reservoir
B-Hydraulic reverser
C-DIAL-A-MATIC (Automatic Height Header Control)
D-Header lower/raise (manual)
E-Inlet Port And Flow Divider
F-Reel raise
G-Reel fore-and-aft
H-Threshing cylinder speed variator
I-Header lateral tilt
J-Unloading tube swinging
L-Pressure check port block

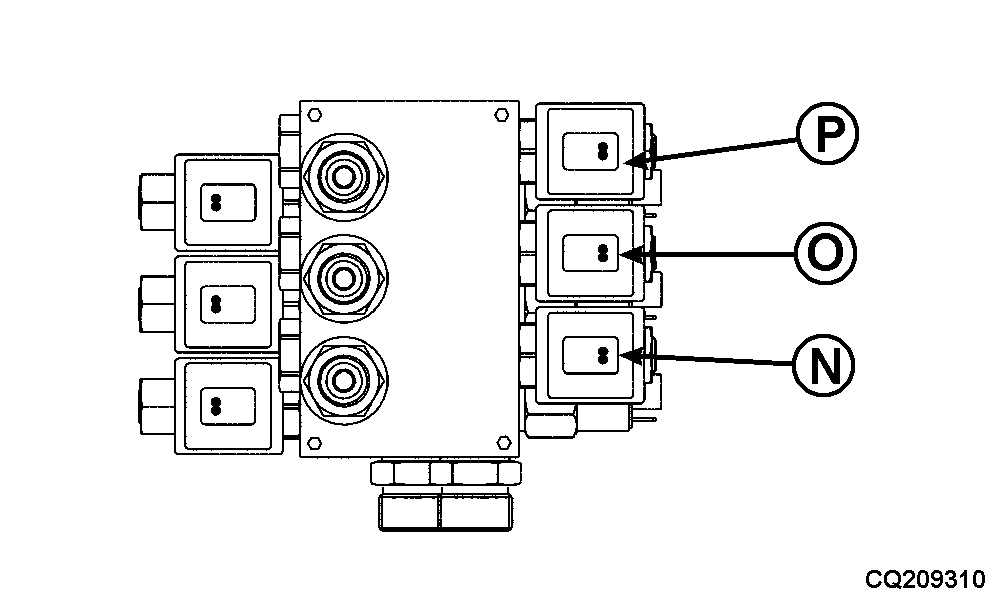

N-Cutting platform drive
O-Separator drive
P-Unloading auger drive
