OMCQ39839: 1450, 1550, 1450 CWS, 1550 CWS, 1450 WTS and 1550 WTS Combines , Block File: AG_CO03622_2853_19

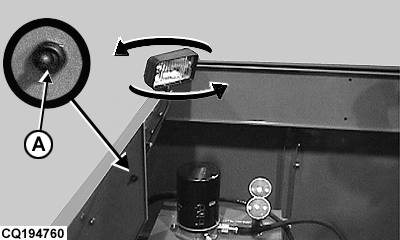

The engine compartment lighting should be used while servicing the engine at night. Switch on the light through the switch (A), nearby the light.

This light also has the rear light function.

This light is assembled in a support that turns according to the operator's needs, which may illuminate the engine or the rear hood.

NOTE: When you move the Hydro lever to the rear, the engine compartment lighting will turn on.

AG,CO03622,2853 -19-13MAR02-1/1
