Adjusting Floating Drum Height (Only for Feeder House 600 Series)

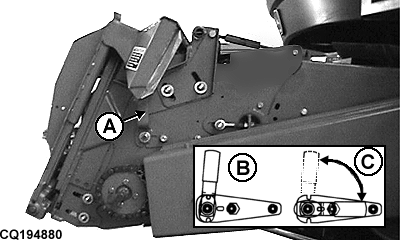

The position of the lever is what determines the drum height.

For corn - The lever (A) should be in position (B) (vertical).

For other crops - The lever (A) should be in position (C) (horizontal).

AG,CO03622,2856 -19-11MAR02-1/1
