Adjusting Tension of Feeder House Conveyor Chains (600 Series Feeder House)

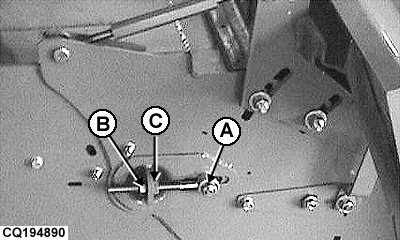

Loosen nut (B) both sides and nut (C) and move bolt (A) as needed to obtain a good tension of the conveyor chains.

Retighten them securely after the adjustment.

IMPORTANT: The chain tension will be ok, when the lowest slat slightly touches the floor of the feeder house.

AG,CO03622,2857 -19-05FEB02-1/1
