Adjusting Tension of Feeder House Conveyor Chains - 300 Series

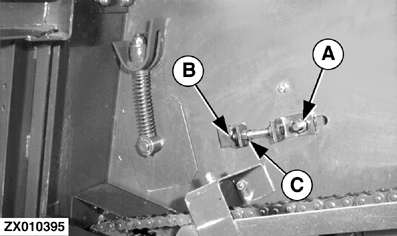

Loosen nut (A) on both sides. Turn nuts (B) and (C) evenly on both sides of the feeder house. Retighten them securely after the adjustment.

IMPORTANT: The chain tension will be ok, when the lowest slat slightly touches the floor of the feeder house.

AG,GG05155,156 -19-11MAR02-1/1
