CAUTION:
Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.
Open the side inspection ports to work on the cylinder.

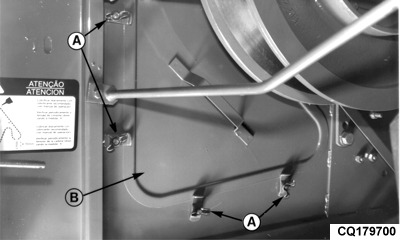

Unscrew wing nuts (A) and pull off cover (B).
A - (1450 and 1550)-Wing nuts
A - (1450 CWS and 1550 CWS)-Nuts
B-Cap
CAUTION:
Before adjusting the machine or performing service work, always switch off all drives, shut off the engine and wait until all moving parts have come to a stop.
