Rotating Cylinder By Hand

causym CAUTION: Stop the engine and remove the ignition key before turning the cylinder by hand.

Open the covers on the grain elevator and cylinder front inspection port.

Insert wrench (A) over spline (B) on the cylinder shaft. The wrench is stored in the tool box and the wrench extension is located near of the clean grain elevator housing.

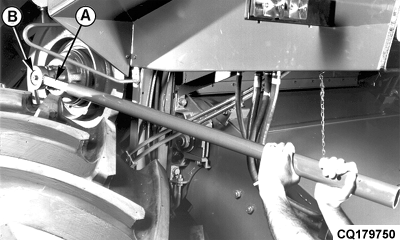

CQ179750

Cylinder Drive without Reduction Gear

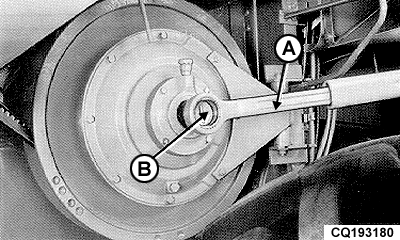

CQ193180

Cylinder Drive with Reduction Gear

AG,GG05155,310 -19-07OCT02-1/1
