Concave De-Awning Plates

De-awning plates are recommended for some crops such as: barley, wheat and peas, when these crops are showing difficulties of threshing.

NOTE: It is not necessary to remove the concave to install the plates.

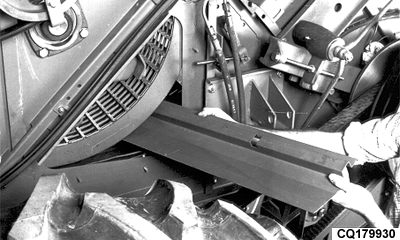

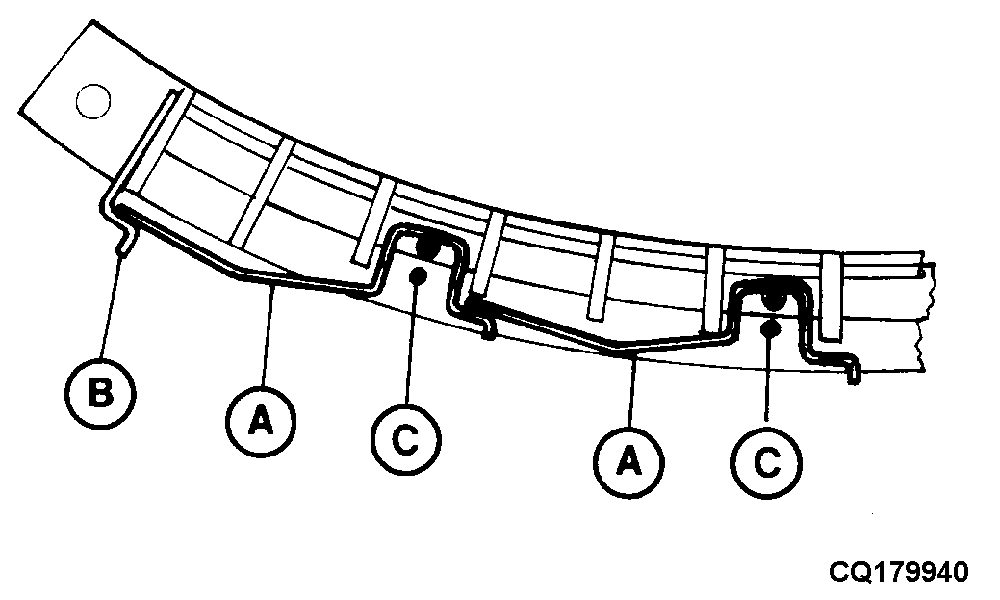

· After harvesting, clean the chaff from the front support (B) to ensure that the de-awning plate fits properly in the concave.

· Attach the de-awning plate (A) with the mounting bolts (C).

· Use one plate to begin. Then install the second if needed.

AG,GG05155,320 -19-11OCT02-1/1
