Tooth Concave Closure Plates

Can be used to harvest soy or other beans.

NOTE: It is not necessary to remove the concave to install the plates.

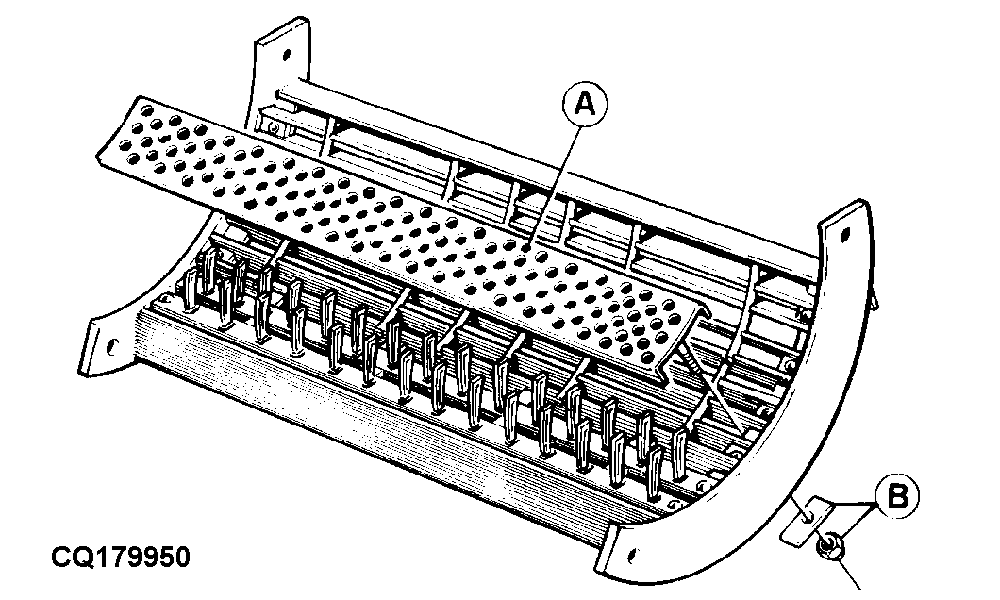

· Attach the closure plate with tabs and nuts (B).

· Use one plate to begin. Then install the second if needed.

AG,GG05155,321 -19-24FEB99-1/1
