Throttle Rocker Switch (1450 CWS and 1550 CWS)

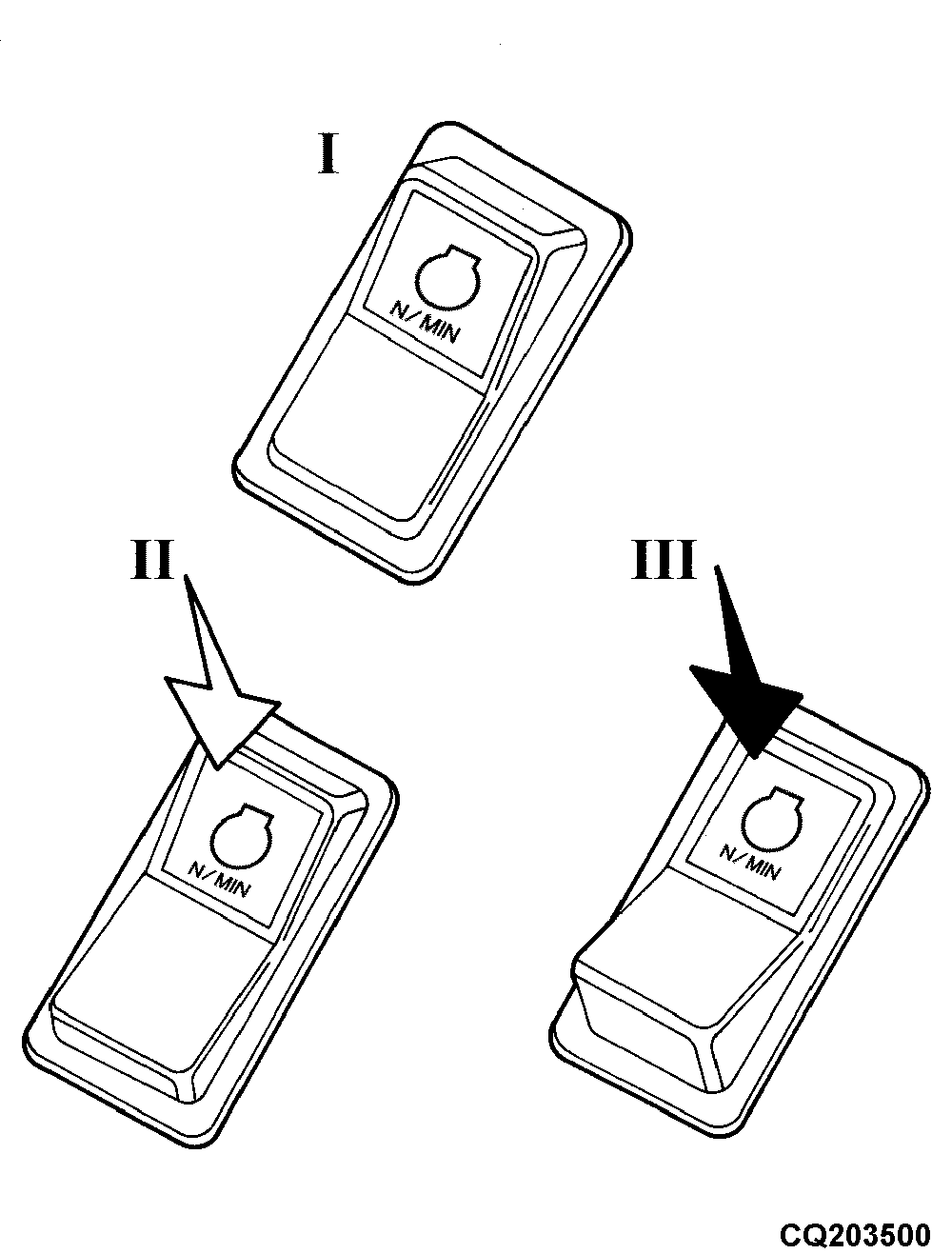

Press the rocker switch according to the illustration.

NOTE: With CWS combines, the engine speed goes always to 2250 rpm when the third gear is selected.


I-Slow speed - 1300 rpm
II-Medium speed - 1850 rpm
III-Fast Speed - 2550 rpm

CQ203500

CO03622,0000064 -19-07OCT02-1/1
