Cab Ladder Access

The cab ladder can be adjusted in three different positions:

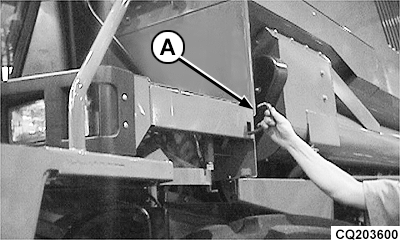

To swing ladder pull down latch (A) and turn it until it fits in one of the three positions.

NOTE: With cab ladder in transport position (III) feeder house must remain raised. To lower feeder house is necessary place ladder in position (I) or (II).

A-Latch

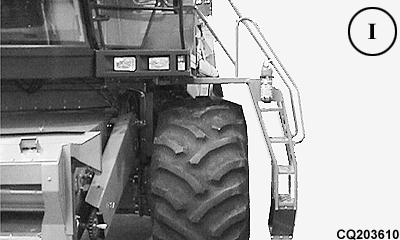

I-Harvesting position

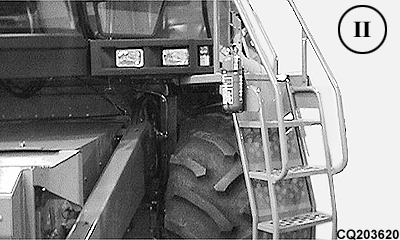

II-Harvesting position with small headers

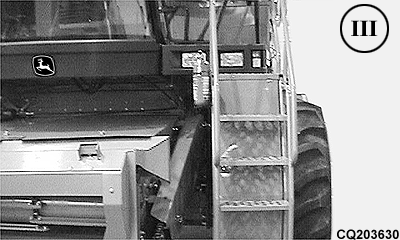

III-Position for transport on roads (without cutting platform)

CO03622,0000065 -19-07OCT02-1/1
