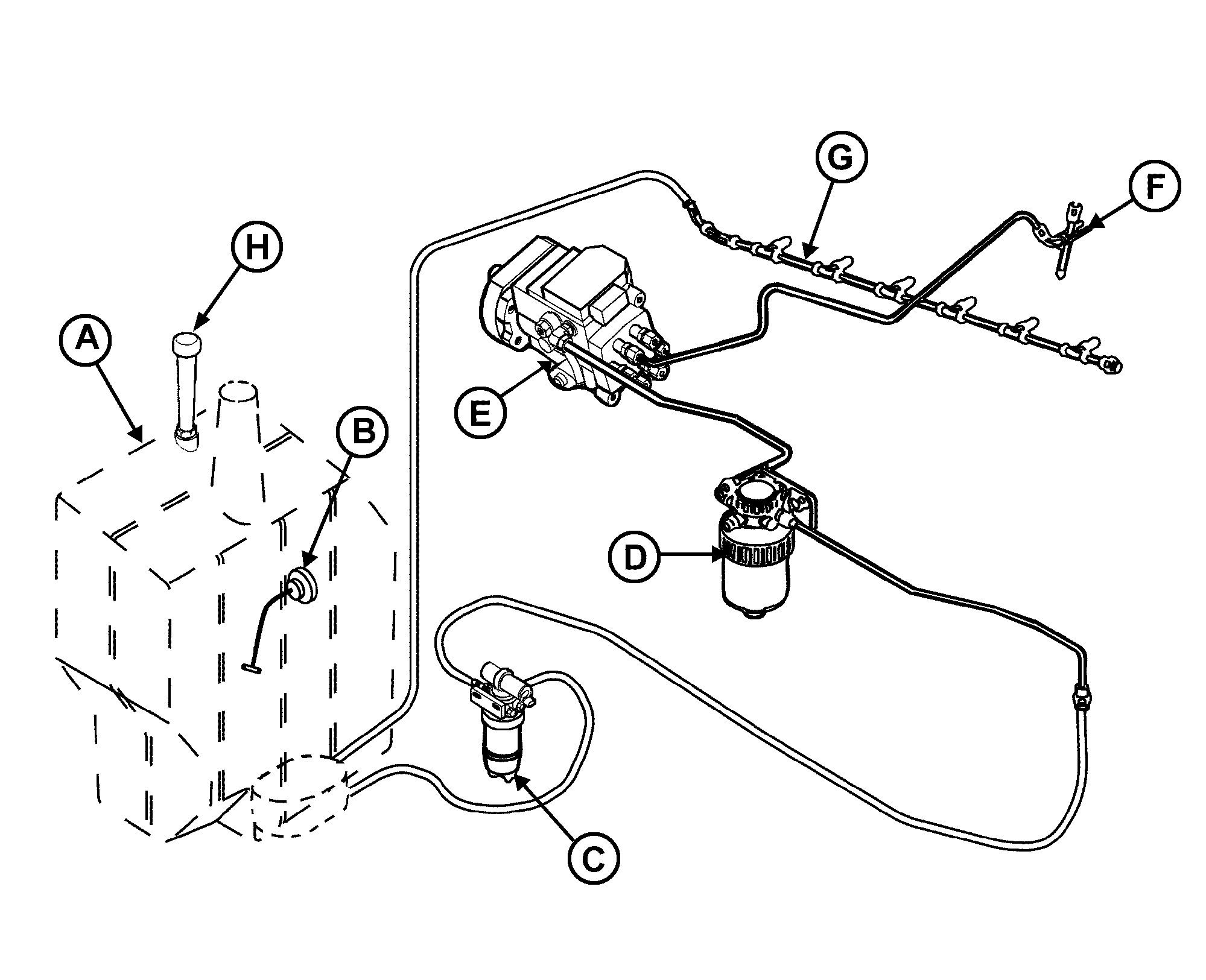

Fuel System on 6.8 L Engine (1450 CWS and 1550 CWS)

A-Fuel tank B-Fuel gauge sending unit C-Water trap and fuel transfer pump

D-Fuel filter E-Injection pump

F-Injection nozzle G-Return line

H-Fuel tank breather

CO03622,0000069 -19-11OCT02-1/1
