Fuse Tester

To test the fuses, a tester was placed in the proper fuse circuit, where it can be verified if it is functioning or not.

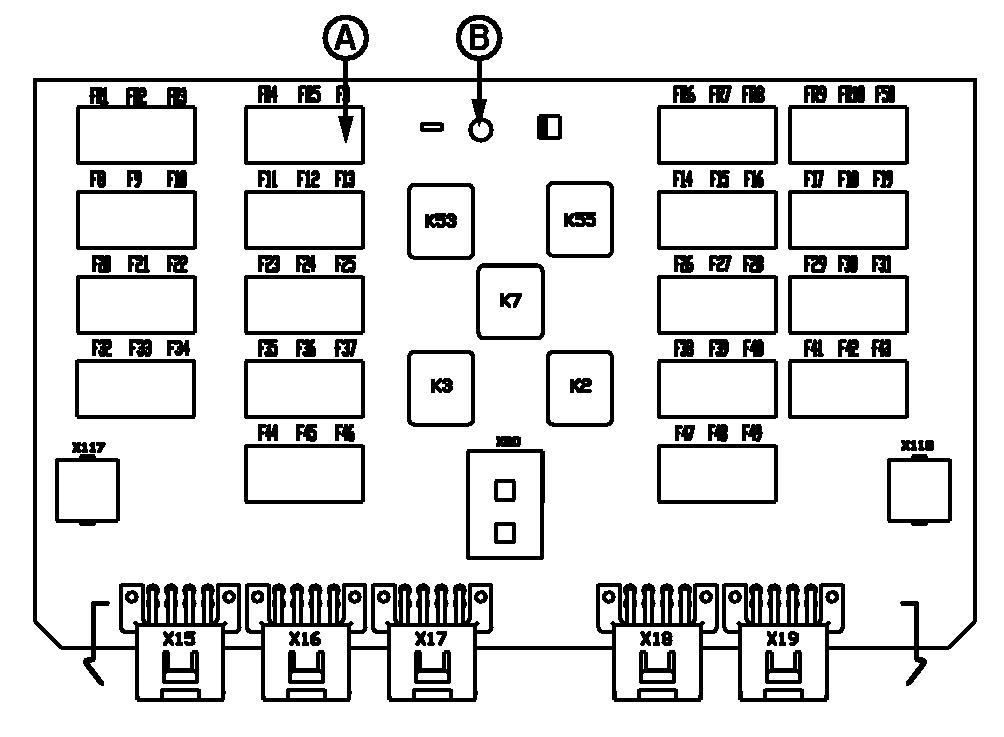

Remove any fuse that assumes that it can be with a defect and insert it in slot. (A). If the led (B) lights up is because the fuse is functioning perfectly.

NOTE: It is not necessary to turn on the ignition key of the colheitadeira to proceed the test, however the interruptor of the battery has to be on.


A-Fuse Tester
B-Luminous diode

CQ216570

CO03622,000006D -19-19NOV02-1/1
