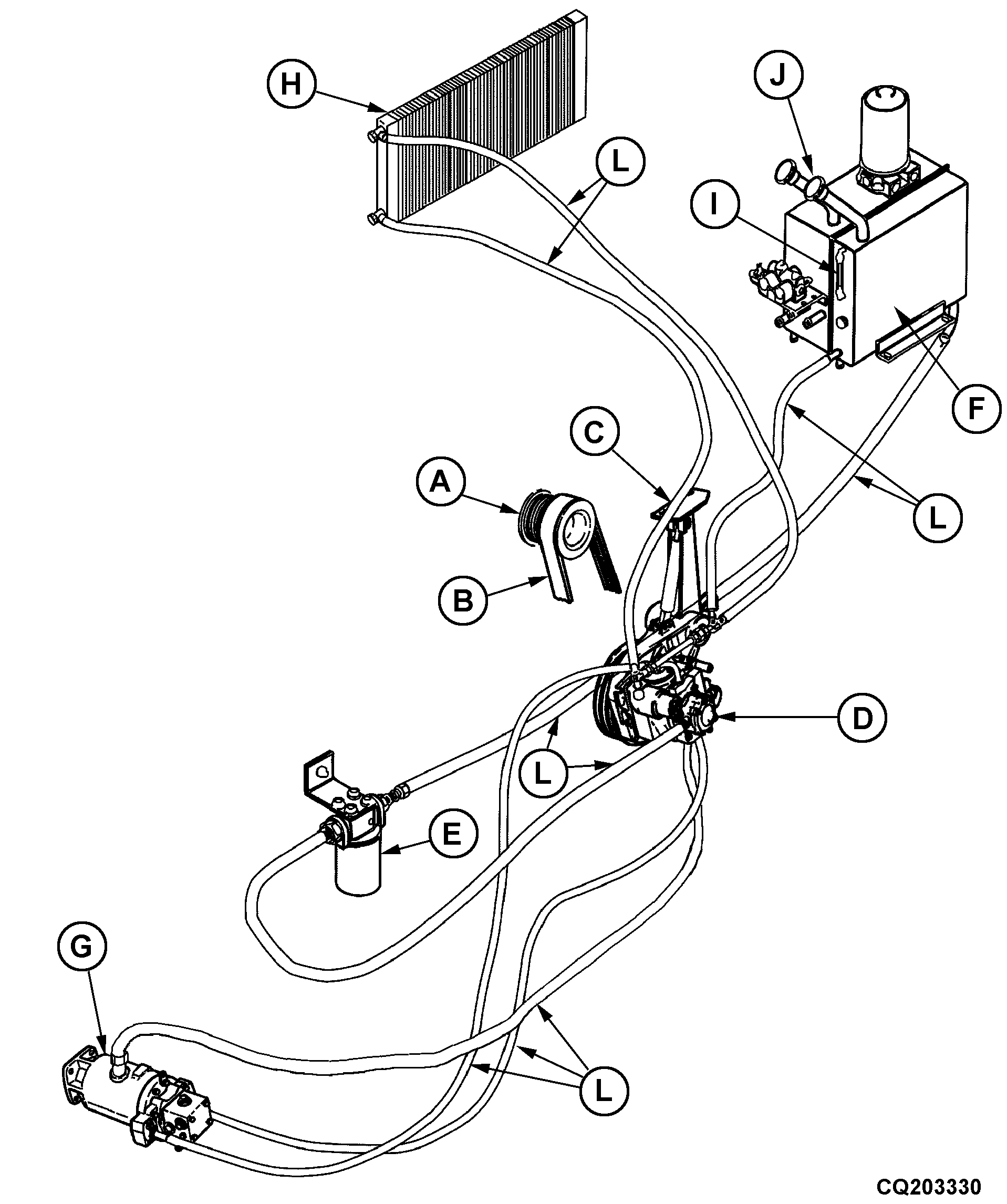

A-Engine power takeoff
B-Multi "V" belt
C-Idler hydraulic cylinder

D-Hydrostatic pump
E-Oil filter
F-Oil reservoir

G-Hydrostatic motor
H-Oil cooler
I-Level indicator

J-Oil filler neck
L-Hoses

CO03622,0000070 -19-15MAR02-1/1
