Header Lateral Tilt Locking › Only for Argentine

NOTE: To facilitate the installation of the lateral tilt locking (A), disengage header in order to move the front face (E) of feeder house.

Remove screws (B), pins (C) and hydraulic cylinder (D).


A-Lateral Tilt Locking
B-Attaching Screw
C-Pins
D-Hydraulic cylinder
E-Feeder House Front Face

CQ216380
CQ216390

MB03730,000001C -19-24OCT02-1/3

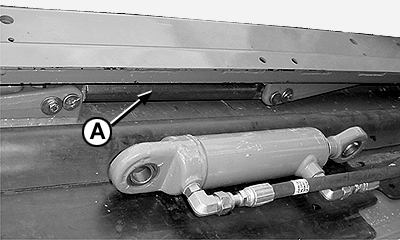

Install locking (A) in hydraulic cylinder position.

CQ216400

MB03730,000001C -19-24OCT02-2/3

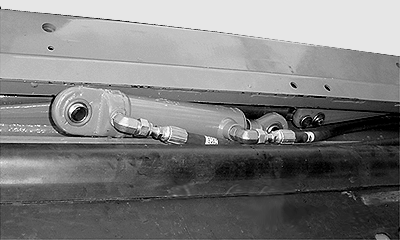

Place the hydraulic cylinder next to the locking.

CQ216410

MB03730,000001C -19-24OCT02-3/3
