Cutting Platform Raising and Lowering Speed Adjustment

Adjusting Slow Raising Speed

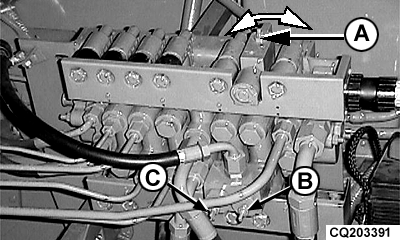

This adjustment is done through the screw (A) located on the primary hydraulic valve block.

- Turn screw clockwise to decrease speed.

- Turn screw counterclockwise to increase speed.

The screw is adjusted in the assembly line with a speed considered medium, which means nor fast neither slow.

The adjustment of the slow and fast lowering speed can be done in the same way through its respective valves (B) and (C).

A-Adjusting slow raising speed
B-Adjusting slow lowering speed
C-Adjusting fast lowering speed

MB03730,000001D -19-24OCT02-1/1
