Grain Tank Extension (Option CWS)

The grain tank extension has two positions, one for transport and another for harvesting.

causym CAUTION: The grain tank extension must be in transport position when the combine is transported on roads due the height limit.

Road position:

Pull locking lever (A) and turn lever (B) 180° counterclockwise until pin (A) fits into the hole.

Harvesting position:

Pull locking lever (A) and turn lever (B) 180° clockwise until pin (A) fits into the hole.

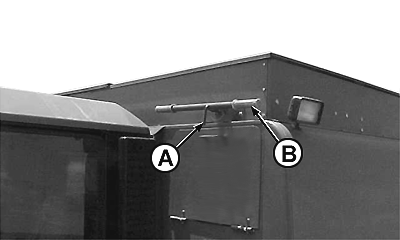

CQ216590

Grain tank extension - transport position

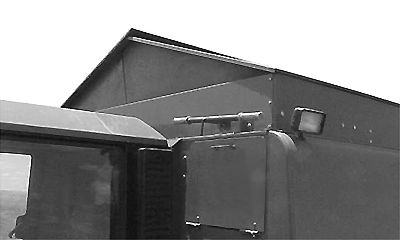

CQ216600

Grain tank extension - harvesting position

MB03730,0000021 -54-26NOV02-1/1
