Access to Grain Tank (Option CWS)

For accessing the grain tank is necessary to follow the procedure below:

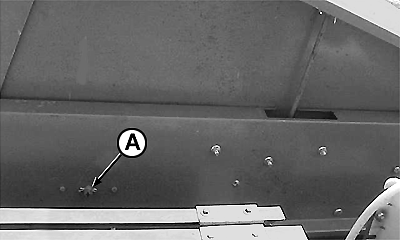

1. With an open end wrench, turn pin (A) counterclockwise until cover (B) is free to be raised.
2. Cover (B) should be raised until bar (C) goes through hole (D) to lock the cover in open position.

Closing the cover:

1. Turn pin (A) counterclockwise again closing the cover until the bar (C) is released.

CQ216610
CQ216620
CQ216630

MB03730,0000022 -54-26NOV02-1/1
