Bleeding Reel Forward and Backward Hydraulic Circuit

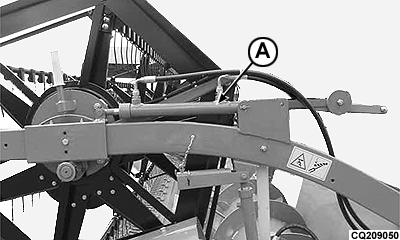

To bleed reel forward and backward cylinders (A), it is necessary to follow the following procedure:

• Move cylinders forward and keep for 15 seconds.
• Move cylinders backward and keep for 15 seconds.
• Repeat this procedure 2 or 3 times and the cylinders will be bled automatically.

MB03730,00001EB -19-15MAR02-1/1
